One Click Metal Telechargement for 3D printers

METAL 3D PRINTING TECHNOLOGY UNDERSTANDABLE AND AVAILABLE WITH ONE CLICK
Home » 3D printers » One Click Metal » BOLDSERIES » MPUREpro
Select Additive MPRINT
Select Additive MPRINT

One Click Metal BOLDSERIES

MPUREpro

The MPUREpro is the 3 in1 unpacking station of the BOLDSERIES and is compatible with the MPRINT 3D printer. It depowders the component, screens the powder and provides recycled powder for reuse. The cartridge system of the BOLDSERIES ensures easy and safe powder handling, so that the contact with the powder is reduced to a minimum for the user. With the side connection for an ATEX vacuum cleaner you can remove excess powder from the unpacking chamber quickly and easily. This makes the unpacking process fast and efficient.

Specs

MPUREpro

Powder Supply

 - 5 supply cartridges
- 250% oversupply of the build volume (at maximum capacity)
Process Chamber
 - LPBF-process
- X-profile powder application
- 200W laser power (fiber)
- 70µm focus diameter
- Up to 3000mm/s scanning speed
Build Module

- 150mm x 150mm x 150mm
- 20-80µm layer height
Replaceable Safe Gas Filter

MConnection and Consumption

- Power supply: 230V/50-60Hz
- Fuse protection: 16A
- Inert gas: Nitrogen

Dimensions and Weight

- Dimensions WxHxD: 1,1 x 1,9 x 0,79m
- Weight: 440kg

Key Features

2in1 unpacking and Sieving Station
One machine, two functions: with the MPUREpro, the unpacking of a component and the sieving of processed powder are combined in one machine. This means time and cost savings for the user.

Automated Ultrasonic Sieve
The integrated ultrasonic sieve recycles processed powder. For this, a full overflow cartridge and an empty supply cartridge are inserted into the holders. The sieving then runs autonomously and independently of the user.

Unpacking without Powder Contact
Unpacking a component with the MPURE is safe and easy for the user. Thanks to the chamber door as well as the gloves, the component is unpacked in a closed chamber. The integrated connection for an ATEX vacuum cleaner further simplifies unpacking.

Key Industries

Branches:

  • Mechanical engineering
  • Tool making
  • Automotive
  • Dental
  • Medical
  • Aerospace
  • Jewelry

Possible applications:

  • Product development
  • Prototyping
  • Industrial production of individual parts, small or large series
  • Research and development
  • Education
Get a Quote
Request Literature

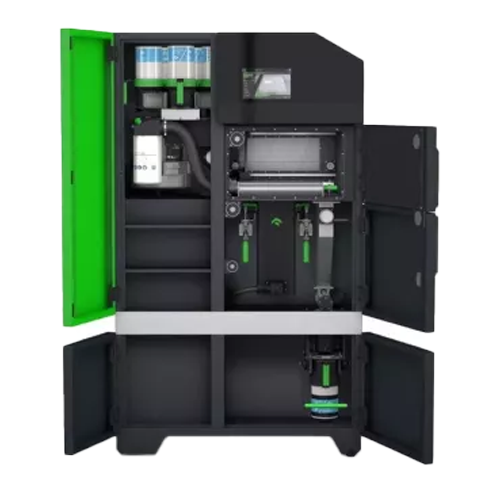

Select Additive MPRINT

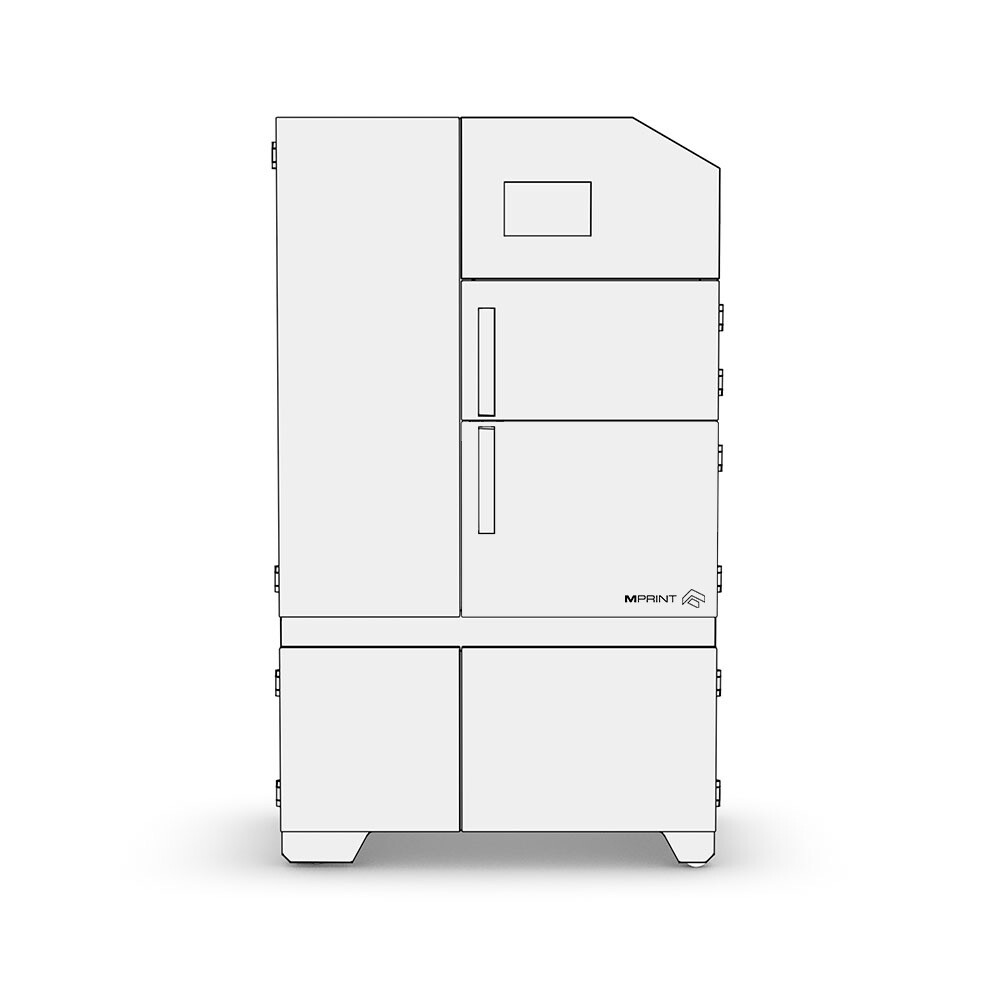

Select Additive MPRINT Diagram
