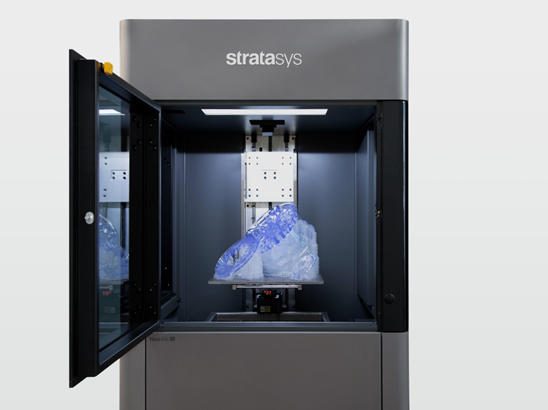

Neo® Stereolithography

The reliable and proven Neo SLA 3D printers build high-quality parts with superior surface quality, accuracy and detail.

Every area of the Neo has been carefully considered, always with the customer needs in mind. From manufacturing the Neo with best-in-class components for greater reliability to regular user-driven software updates, the customer is always at the core of the Neo’s development.

Used for high yield volume applications from prototyping and tooling, through to master patterns, the Neo is already placed within industries such as F1, automotive, consumer products, service bureaus and more.

Specs

Neo800

PLATFORM SIZE	31.5 x 31.5 x 23.6" (800 x 800 x 600 mm)
BEAM SIZE AND FOCUS	150 to 600 μm (Dynamic and Variable)
BUILD MODES	HD and SD

NEO 450s

PLATFORM SIZE	17.72 x 17.72 x 15.75" (450 x 450 x 400 mm)
BEAM SIZE AND FOCUS	80 to 750 μm (Dynamic and Variable)
BUILD MODES	HD and SD

NEO 450e

PLATFORM SIZE	17.72 x 17.72 x 15.75" (450 x 450 x 400 mm)
BEAM SIZE AND FOCUS	250 μm (Dynamic)
BUILD MODES	SD

Key Features

From hardware to software, the reliable Stratasys Neo 3D printer is developed as next-generation stereolithography and features:
Large build volume with a compact footprint resulting in larger parts with fewer joins and/or higher production quantities.
High-power laser and dynamic beam size control for greater accuracy. Variable beam size also featured for faster build speeds and maximum productivity.
Excellent Titanium software functionality including part traceability and reporting function with easy to use interface.
Accessible support with remote diagnostics or convenient on-site support from our exceptional service team.

Key Industries

Aerospace
Automotive
Consumer Products
Defense
Dental
Energy
Job Shop
Medical
Education
Art and Fashion
